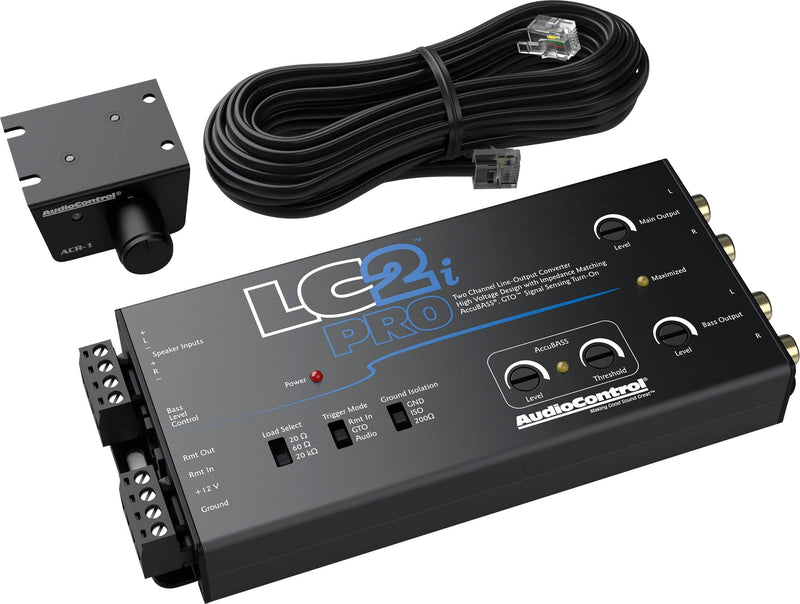

AudioControl - 2-Channel Active Line Output Converter with AccuBASS and Subwoofer Control - Black
Ships from Best Buy®
LC2I PRO
Product Overview
For use when adding aftermarket amplifiers to car audio systems without RCA preamp outputs.
2-channel interface with dual amplifier preamp outputs
Features one set of active speaker-level inputs one set of full range main line-level outputs and one set of low-passed (1000 Hz) bass line-level outputs for adding an aftermarket subwoofer.
400W (40V) peak power input per channel 20k ohms
For high-quality sound.
9.5V RMS (13V peak) maximum output voltage 14.4V
For efficient operation.
AccuBASS processing
Recovers bass frequencies lost at higher volumes.
Turn-on trigger mode switch
Choose between GTO Signal Sense (DC offset) and audio sense to automatically power the line output converter or use remote 12V input for manual control.
Dual variable stereo gain controls with clipping indicator
Allows you to adjust main and bass output signals from -12dB to +12dB and indicates when levels are optimal.
Selectable on-board load resistors
Including 20 ohms 60 ohms and 20k ohms impedance for newer factory-amplified vehicles.
Selectable ground isolation
Choose from comm
Description
Specs
Length: 2.5 in
Width: 8.7 in
Height: 7.6 in
